# CommCare Integration

#### CommCare has an existing integration for enrolling and identifying beneficiaries using Simprints. Follow the Quick Start guide to easily integrate Simprints to your CommCare application. <a href="#h.p_8psbnc9g6woo_l" id="h.p_8psbnc9g6woo_l"></a>

### What is CommCare? <a href="#h.p_nbgtqeoti8gp_l" id="h.p_nbgtqeoti8gp_l"></a>

### [CommCare](https://www.dimagi.com/commcare/) <a href="#h.p_ngjzzhtd671i_l" id="h.p_ngjzzhtd671i_l"></a>

CommCare is a data collection platform that frontline workers can use to collect, track and manage a beneficiary's case over time. CommCare can work offline on Android phones and tablets. CommCare HQ is CommCare's server where a project manager will be able to design the data collection forms whilst the CommCare app will allow a frontline worker to download the forms and start managing a beneficiary's case,

Simprints integrates with CommCare to provide frontline workers with the ability to enrol and link a beneficiary's record to their biometrics. This will allow for a frontline worker to easily identify a beneficiary using their biometrics over time on follow-up appointments.

### Pre-requisites for integrating CommCare and Simprints <a href="#h.p_pjy8fhsxo8w6_l" id="h.p_pjy8fhsxo8w6_l"></a>

### CommCare <a href="#h.p_ts8pttj4o-k__l" id="h.p_ts8pttj4o-k__l"></a>

* CommCare account with an Advanced Software Plan\*
* Access to Simprints biometrics integration on CommCare HQ\*

\*Contact your CommCare sales representative if you do not have this enabled

### Simprints <a href="#h.p_yz9f5q99o-k6_l" id="h.p_yz9f5q99o-k6_l"></a>

* Simprints Project ID\*
* Simprints QR code\*

\* Contact your Simprints Project Manager if you do not have this

### How to integrate CommCare and Simprints? <a href="#h.p_m5jik06k7lso_l" id="h.p_m5jik06k7lso_l"></a>

You will need to integrate CommCare and Simprints using your CommCare HQ account. Please ensure that you have access to the Simprints integration module based on the pre-requisites above.

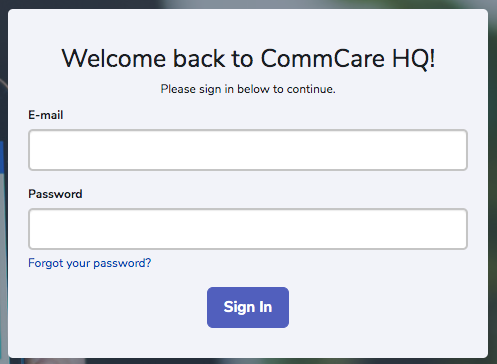

**Step 1:** Log-in to your CommCare HQ account

<figure><img src="https://2829653571-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fe3eCeQ95EVZnUB1IR9zM%2Fuploads%2F8vGd6D624hNd7F0oPsO4%2FEmbeddedImage.png?alt=media&#x26;token=a622f3ce-fc48-402c-acbf-f5aeffa68121" alt=""><figcaption></figcaption></figure>

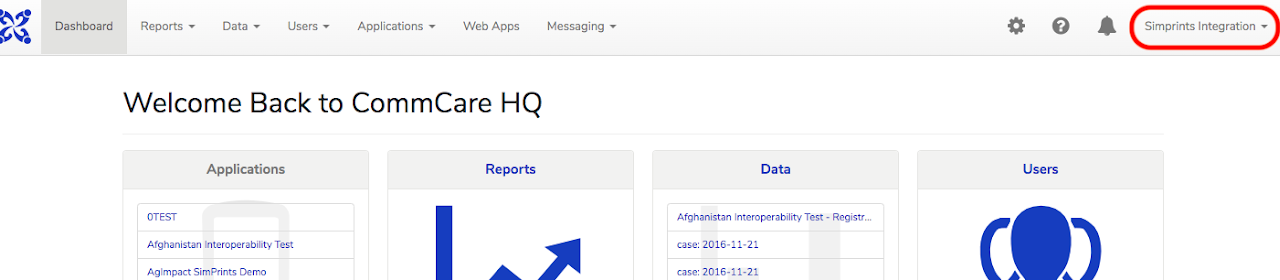

**Step 2:** Select the CommCare project you would like to integrate with Simprints

<figure><img src="https://2829653571-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fe3eCeQ95EVZnUB1IR9zM%2Fuploads%2FZWAaKoQM8Irw1YFXsfvM%2FWelcome.png?alt=media&#x26;token=1f782587-c4de-4ea2-a9f4-75843b02690a" alt=""><figcaption></figcaption></figure>

**Step 3:** Click the ⚙ icon, project settings and click Biometrics Integration. *If Biometrics Integration is not displayed as below, contact your CommCare representative to enable this.*

<figure><img src="https://2829653571-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fe3eCeQ95EVZnUB1IR9zM%2Fuploads%2FTB8M11ShrskX2mCmLBdM%2FEmbeddedImage%20(1).png?alt=media&#x26;token=4cbf16ea-916d-4c13-973a-0125b84f8910" alt=""><figcaption></figcaption></figure>

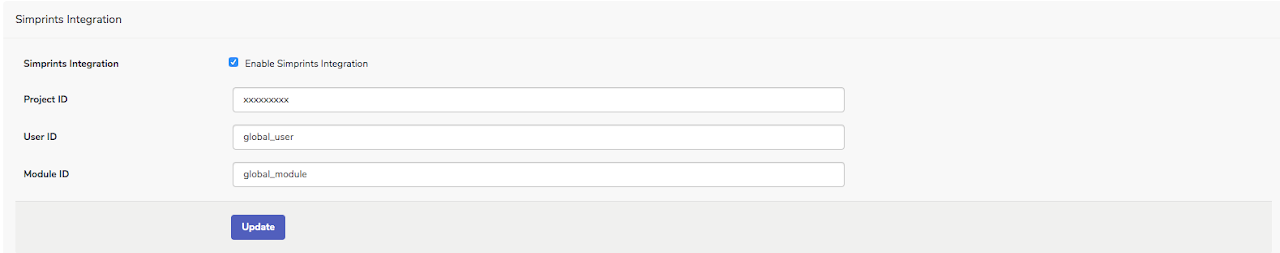

**Step 4:** Complete the Simprints integration page:

* **✅** Simprints integration
* Complete the Project ID field with the Project ID provided by your Simprints Project Manager. *Contact your Simprints Project Manager if you do not have this*

**Step 5:** Click Update to save the Simprints integration

<figure><img src="https://2829653571-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fe3eCeQ95EVZnUB1IR9zM%2Fuploads%2FNTV6TzwnPLc4HgRZg2jH%2Fenablesimprints.png?alt=media&#x26;token=c58dfb9f-c136-44ec-922b-e71fae346031" alt=""><figcaption></figcaption></figure>

**Step 6:** To integrate Simprints in the correct application within your CommCare project. Simprints will now be integrated to:

* Your registration form to enrol a beneficiary with their biometrics
* Your case list for a frontline worker to identify a beneficiary using their biometrics

<figure><img src="https://2829653571-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fe3eCeQ95EVZnUB1IR9zM%2Fuploads%2F3N65fF7CFhDVngMLfPfa%2FEmbeddedImage%20(2).png?alt=media&#x26;token=88b4fa71-457a-4100-ab38-5a7624acf3fd" alt=""><figcaption></figcaption></figure>

Select the CommCare application to integrate Simprints with

**Step 7:** Click + Add.. and click Biometrics to complete Simprints integration

<figure><img src="https://2829653571-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fe3eCeQ95EVZnUB1IR9zM%2Fuploads%2F3K9C37YltMqt4IcvoQXv%2FEmbeddedImage%20(3).png?alt=media&#x26;token=89156efa-f6dc-4f1b-ac04-571273395cd8" alt=""><figcaption></figcaption></figure>

**Step 8:** Congratulations, you have now successfully integrated Simprints as part of your CommCare application!

<figure><img src="https://2829653571-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fe3eCeQ95EVZnUB1IR9zM%2Fuploads%2FFdNQNXhZSpbsTjdBl1ub%2Fhttps_lh3.googleusercontent.combWT8R3PjxOlg3SatY4C5M899LhVEjUa_9yzCjgpoCs3oNc__q4FatxdB7mvKTacMz1yGMrFK2ZkgdVHuJGTWxfEqPGmH9B2elCR2XYsdk6iBDtWcfg4JQgMVUmakCAxLsuybPrDDS97QMtQH5g.png?alt=media&#x26;token=bb210d69-e939-426d-9e72-2be2af5334e7" alt=""><figcaption></figcaption></figure>

### Customising your CommCare and Simprints integration <a href="#h.p_9ra39f9nioil_l" id="h.p_9ra39f9nioil_l"></a>

You can further customise your Simprints integration to add tags to a beneficiary's biometrics or to make Simprints a mandatory step in your frontline worker's workflow.

Click [here](https://simprints.gitbook.io/docs/development/simprints-for-developers/other-intergrations/commcare-integration/commcare-enrolment) to find out more.
